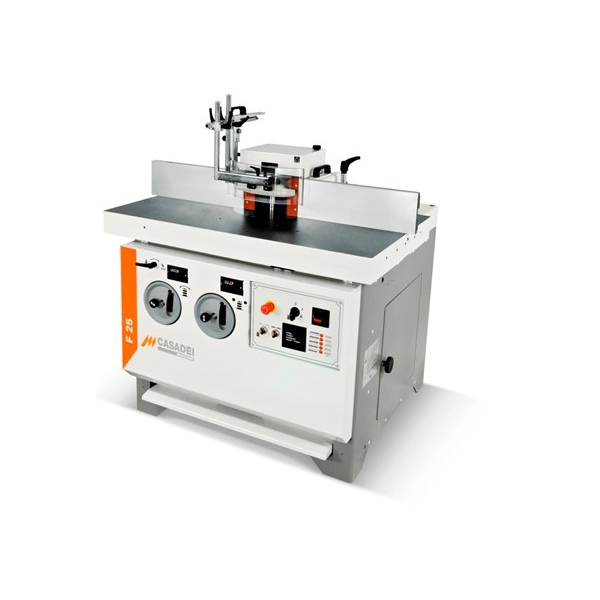

CASADEI F25

$1.00

SPINDLE MOULDER WITH +/- 45° TILTING SHAFT

Machine Model:	CASADEI F25
Origin:	Italy

Description

Manual tool-holder shaft raising and inclination, complete with mechani-cal digital of working height (F 25).
Motorised tool-holder shaft raising and inclination, complete with elec-tronic digital of working height (F 25 M).
Safety micro-switches on motor access door.
Emergency pushbutton.
Padlockable main switch.
Overload switch protection.
Direct start main motor.
Reverse spindle rotation.
Auxiliary low voltage circuit (110 Volts).

Technical Features

TECHNICAL DATA
Worktable dimensions	1200x810 mm
Spindle tilting	-45° / +45°
Useful spindle height - ø 30 – 35 - 1” ¼- ø 40 – 50 MK4 interchangeable spindle (opt) - ø 30 – 35 - 1” ¼ - ø 40 – 50	140 mm 180 mm 140 mm 180 mm
Spindle moulder shaft diameter	35 mm
No. 5 spindle rotation speeds	3000/4500/6000 /8000/10.000 rpm
Max. tool diameter when profiling	250 mm
Max. diameter of returning tool under a worktable	320x60 mm
Exhaust hood on the fence	Diam. 120 mm
No. 2 rear exhaust hoods	Diam. 60 mm
Main motor power (S6) With Automatic Star Delta	8 kW 11 HP 60 Hz
