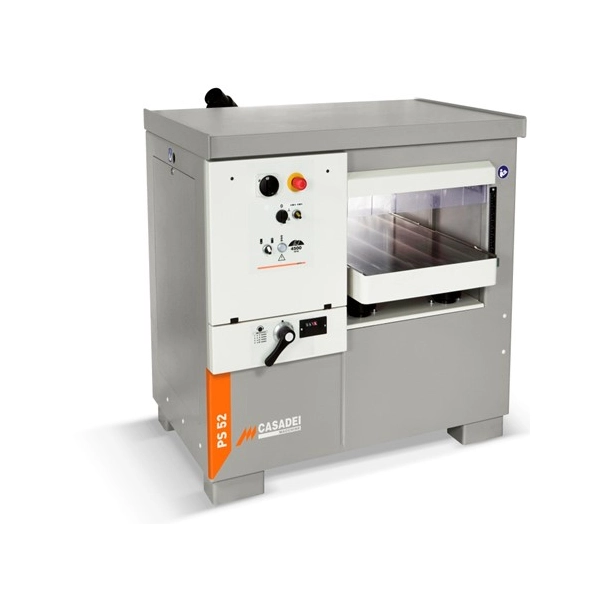

CASADEI PS52

$1.00

THICKNESS PLANER

Machine Model: CASADEI PS52
Origin: Italy





Contact Us
Request A Quote
Share:
  • Description
  • Technical Features
Description

STANDARD EQUIPMENT

  • Ribbed cast iron worktable with vertical sliding by means of 4 steel screws.
  • Table lifting with 2 speeds and micrometric sliding.
  • Cutterblock with knife-setting device.
  • Readout of working height with decimal control of the quota.
  • Front roller in helical steel.
  • Rear rubber-coated steel roller.
  • Infeed and outfeed barrier.
  • Main switch.
  • Overload switch protection.
  • Auxiliary low voltage circuit (110 Volt).
  • Exhaust hood.
  • Manual star-delta start of main motor.
Technical Features
TECHNICAL DATA
Working width 520 mm
Working height (min./max.) 3,5/250 mm
Worktable dimensions 530x900 mm
Max. stock removal 8 mm
Min. working length 220 mm
Min. working width 10 mm
Cutterblock rotation speed 4500 rpm
Cutterblock diameter 120 mm
N. 4 knives 35x3x520 mm
No. 4 feed speeds of the workpiece 5-8-12-18 m/min
Diameter of dust extraction outlet 150 mm
Motor power (S6), With Automatic Star Delta 11 kW 15 HP 60 Hz
